CAT 10
( CAT10-000-000 )

Ship category:Motor pleasure yachts
Name of class:CAT 10
Construction:Steel

Project's details:

Project number:CAT10-000-000
Project name:Machinery and ship service system plans

Applied rules/registers:

Technical Directives for Inland Small Crafts and Boats
KöViM Rules for Design, Construction and Conformance of Pleasure Boats
Nautical Regulations

Main features:

Length overall, Lbef [m]9,95
Maximum length, Lmax1 [m]9,95
Maximum length of hull, Lmax2 [m]9,95
Waterline length, Lwl [m]9,8
Maximum breadth with fender rail, Bmax [m]4,1
Breadth of hull, b [m]4
Waterline breadth, Bwl [m]3,8
Depth, D [m]1,01
Freeboard, f [m]0,6
Airdraft from baseline, Hfix [m]3,7
Lightship, delta0 [t]5
Deadweigth, deltamax [t]6
Mean draugth without speed [m]0,4
Inbuilt engine power rating, N [hp]1x144
Service speed, v [km/h]28
Crew, n11
Maximum passenger capacity, n2 [fő]11
Maximum load [kg]1000
Type of main engine1 Mercedes
Character of main engine6 cylinder TDI
Cylinder capacity [ccm]1x3000
Continuous service raing [LE]1x144

Ship engineer tasks:

Technical desription
General arrangement, general structure design

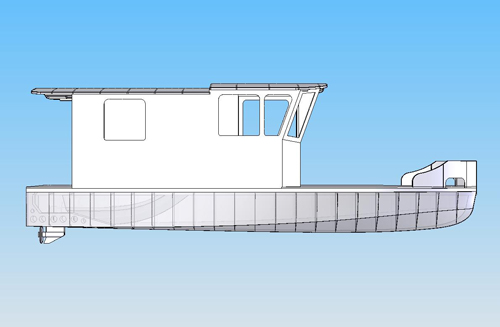

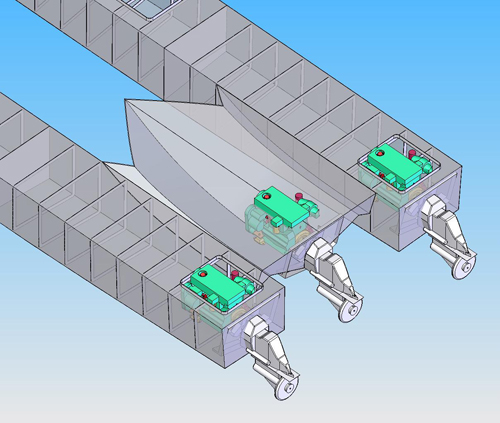

Machinery arrangement
Electric system
Rudder and hydraulic systems
Heating and airconditioning systems
Arrangement of compartments
Hull and deck arrangement

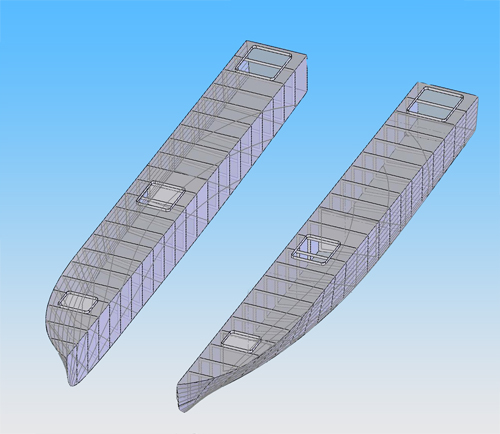

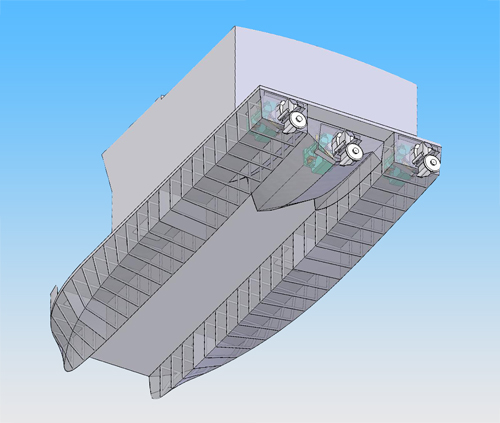

Hull design
Linesplan
Calculation of hydrostatics
Weigth and stability calculation
Subdivision and damage stability calculations
Ship strength calculation
Propulsion calculation
Engine fitting design
Arrangements of equipments and lifesaving means
Navigation equipments
Drinking water, blackwater and sewage systems
Passenger arrangement
Power consumption
Hull forming and curvature analysis
Machinery equipments
