« Ports and floating structures



( ESZKII-000-000 )

Port name:Nautica Port for Small Crafts

Project's details:

Project number:ESZKII-000-000
Project name:Reconstruction of the U-10017-50 Nautica port for small crafts

Applied rules/registers:

Technical supervisory regulations for inland ships
Belvízi hajók, úszó kikötőhelyek, követelmények, vizsgálatok (MSZ EN 14504)
A belvízi utakon közlekedő úszólétesítmények hajózásra alkalmassága és megfelelősége feltételeiről, az úszóképesség vizsgálatáról és tanúsításáról szóló 13/2001. (IV.10.) KöViM rendelet.

Main features:

Length overall, Lbef [m]233
Maximum length of ship/pontoon structure, Lmax2 [m]12
Maximum length of the modules together, Bmax fm]4,8
Ponton/ship breadth, B [m]2,4
Depth, D [m]1
Lightship, delta0 [t]280,5
Maximum displacement, deltamax [t]302
Lightship draugth Tk [m]0,475
Maximum pontoon/ship draugth, Th [m]0,51
Capacity of port, number of boats, ships, n [db]6 of 15 t displacement small craft, plus 15 of 5t displacement small craft
Main dimensions of ships, L [m]15
Main dimensions of ships, B [m]4,5
Main dimensions of ships, Tmax [m]-
Maximal allowable displacement, delta [t/egység]15
Boarding bridge parameters, effective width [m]1,3
Boarding bridge parameters, span of bridge [m]15
Boarding bridge parameters, design load [kN/m2]5

Ship engineer tasks:

Technical description
Drawings

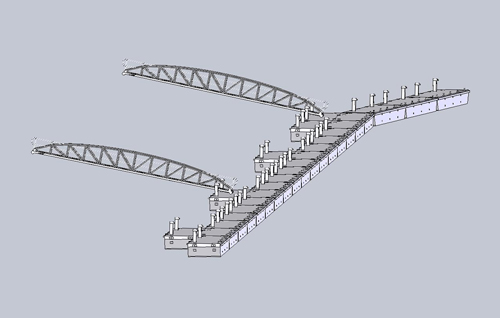

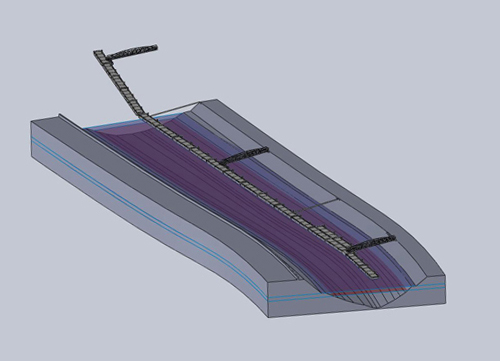

General arrangement of floating structures

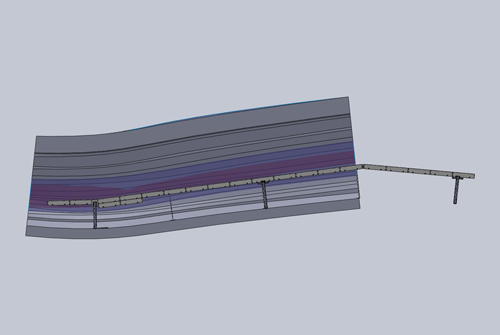

Layout arrangement
General structural design

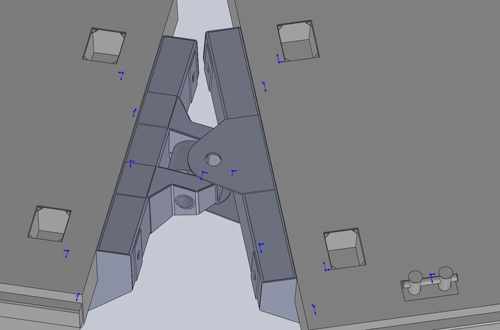

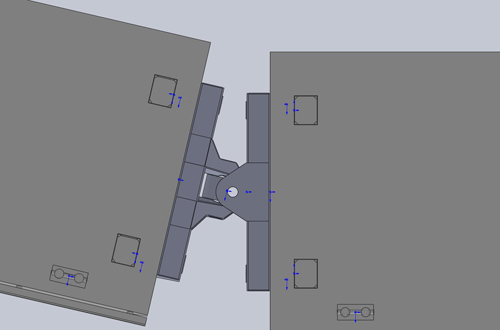

Pontoon design
Calculation of hydrostatics
Weight and stability calculation
Strength analysis
Electrical load calculation, electric networks, emergency lighting, lightning protection
Arrangement of equipments and lifesaving means
Operational guide
