« Ports and floating structures



( KAP-000-000 )

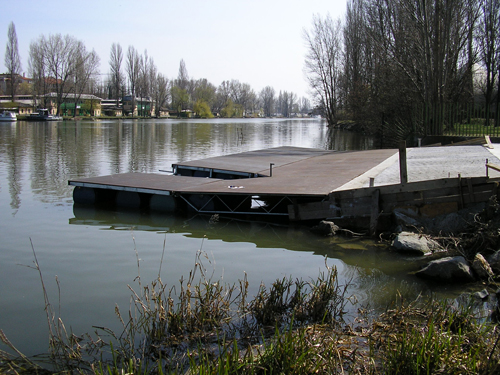

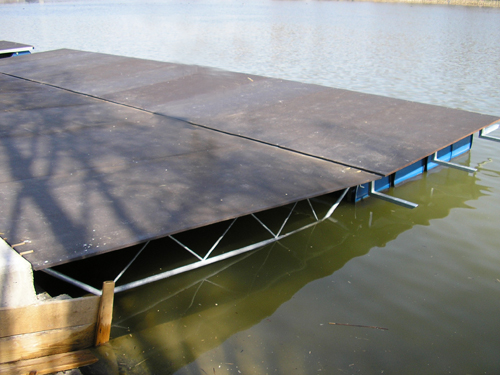

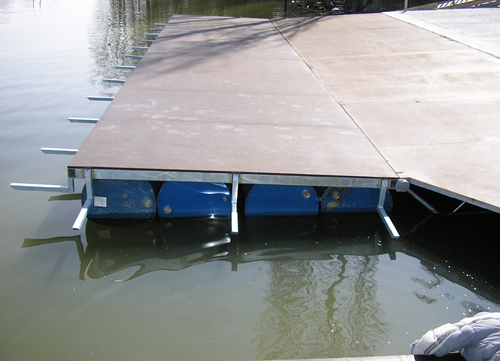

Port name:Cayak pontoon

Project's details:

Project number:KAP-000-000

Main features:

Length overall, Lbef [m]16,11
Maximum length, Lmax1 [m]16,11
Maximum length of ship/pontoon structure, Lmax2 [m]16,11
Maximum length of the modules together, Bmax fm]3,13
Ponton/ship breadth, B [m]3,13
Depth, D [m]0,62
Freeboard, f [m]0,3
Airdraft from baseline, Hfix [m]0,95
Lightship, delta0 [t]3,89
Maximum displacement, deltamax [t]5,94
Maximum pontoon/ship draugth, Th [m]0,31
Boarding bridge parameters, effective width [m]16,11
Boarding bridge parameters, span of bridge [m]2,94
Layout length LTK [m]16,11
Layout distance from the edge of the shore BTK [m]5,995
Shallow depth TG [m]0,31

Ship engineer tasks:

General arranegment, general structure design
General arrangement of floating structures
