« Ports and floating structures


Private port
( GKII-000-000 )

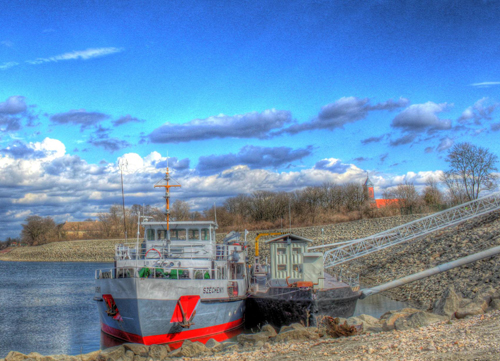

Port name:ÉDÜKÖVIZIG Port Gönyű
Floating structure category:ADN Harbours
Type of purpose:Private port

Project's details:

Project number:GKII-000-000
Project name:Approval project and constructional documentation of ÉDUKÖVIZIG private floating structure port installed at Gönyű, version: GK II

Applied rules/registers:

Belvízi hajók, úszó kikötőhelyek, követelmények, vizsgálatok (MSZ EN 14504)
A belvízi utakon közlekedő úszólétesítmények hajózásra alkalmassága és megfelelősége feltételeiről, az úszóképesség vizsgálatáról és tanúsításáról szóló 13/2001. (IV.10.) KöViM rendelet.

Main features:

Length overall, Lbef [m]80
Maximum length of the modules together, Bmax fm]7,35
Lightship, delta0 [t]147
Maximum displacement, deltamax [t]195
Lightship draugth Tk [m]0,43
Capacity of port, number of ships, n [db]4
Capacity of port, number of boats, ships, n [db]4
Main dimensions of ships, L [m]41
Main dimensions of ships, B [m]9,5
Main dimensions of ships, Tmax [m]1,9
Maximal allowable displacement, delta [t/egység]450
Boarding bridge parameters, effective width [m]2,05
Boarding bridge parameters, span of bridge [m]8,88
Boarding bridge parameters, design load [kN/m2]5
Maximal allowable weigth of lifting with deck crane, M [t]0,8

Ship engineer tasks:

Technical description
General arranegment, general structure design
Drawings

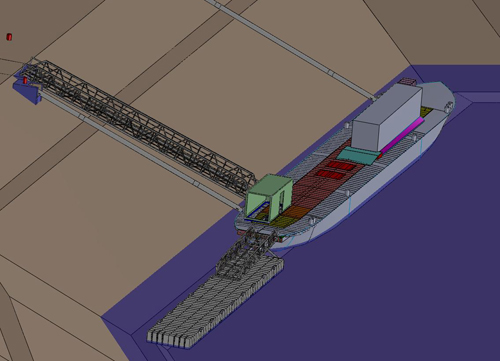

General arrangement of floating structures
Layout arrangement
General structural design
Linesplan
Calculation of hydrostatics
Weight and stability calculation
Buoyancy and stabilty check
Strength analysis
Electrical load calculation, electric networks, emergency lighting, lightning protection
Domestic and fire water system
Arrangement of fire-protecting equipments
Fire safety instructions
Arrangement of equipments and lifesaving means
Operational guide
Constructional documentation and instructions
Plate development and cutting plan
Supervision of construction and repair
