DIXIE 25
( DX25-020-00 )

Ship category:Sailing pleasure yachts
Name of class:DIXIE 25
Construction:Glass Reinforced Polyester

Project's details:

Project number:DX25-020-00
Project name:Stability, equillibrium, mast position calculation, strength calculation of mast and hull, laminating plan
Project description:Stability, equillibrium, mast position calculation, strength calculation of mast and hull, laminating plan.

Applied rules/registers:

Calculations according to DNV (Det Norske Veritas)
Calculations according to NBS (Nordic Boat Standards)
Calculations according to ABS (American Bureau of Shipping)

Main features:

Maximum length, Lmax1 [m]7.85
Waterline length, Lwl [m]6.41
Maximum breadth with fender rail, Bmax [m]2.775
Breadth of hull, b [m]2,445
Depth, D [m]1,235
Lightship, delta0 [t]1.54
Draugth with propulsory equipment, centerboard and keel, Tk [m]1.31
Maximum hull draugth, Th [m]0.331
Maximum draugth, T [m]1,31
Crew, n12
Maximum passenger capacity, n2 [fő]4
Main mast, P [m]8.11
Main mast, l [m]7.8
Main mast, E [m]2.9
Main mast, J [m]2.9
Keel depth [m]0,98
Weigth of bulb [t]0.65
Main mast AN [m2]23.0695
Main mast EHM [m]9.04

Ship engineer tasks:

Linesplan
Calculation of hydrostatics
Weigth and stability calculation
Buoyancy and stability check
Ship strength calculation
Sail design and calculation
Mast design

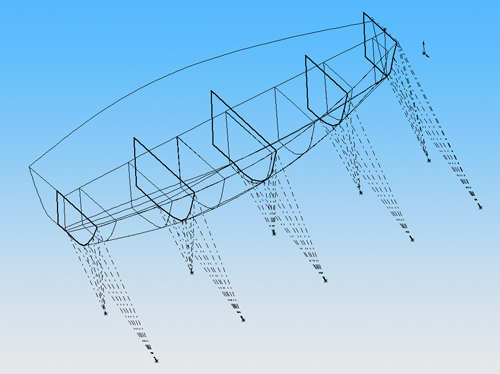

Mast calculation
Equillibrium calculation for the modified sailplan

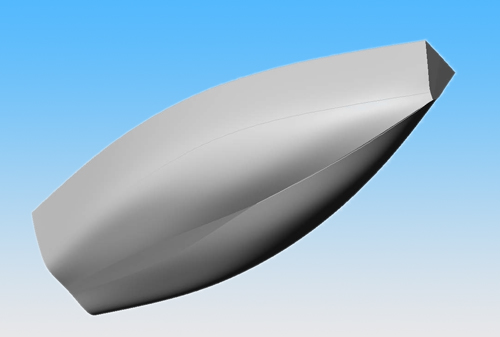

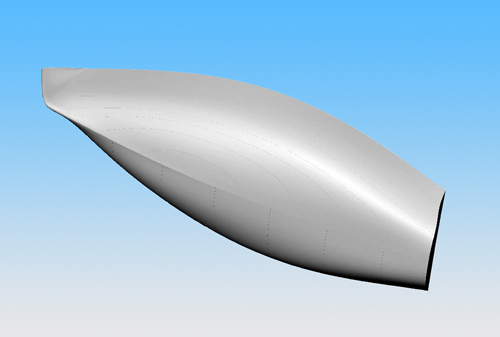

Laser hull and modelling
Calculation of hull plating
Stiffening and calculation of framing
Laminating plan
